OVERVIEW

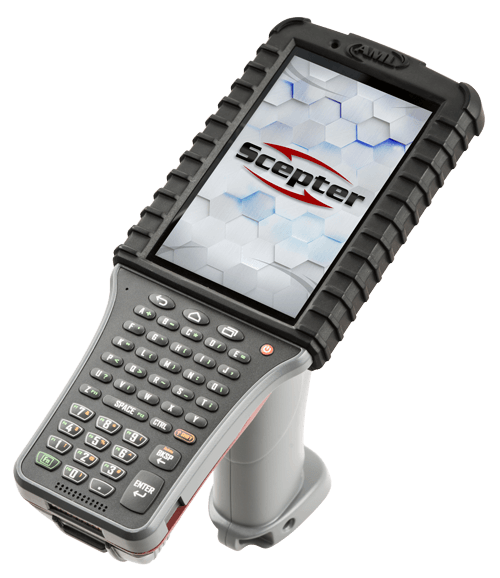

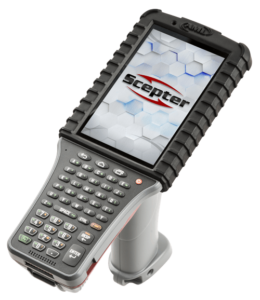

Rugged Android Mobile Computer for Barcoding Applications in Industrial Facilities

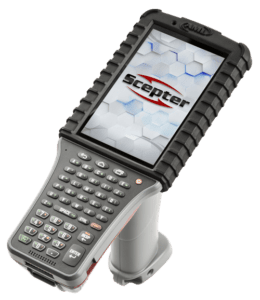

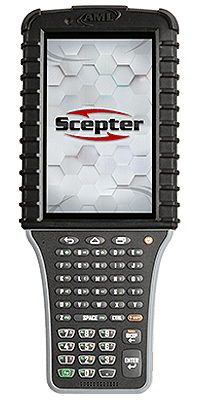

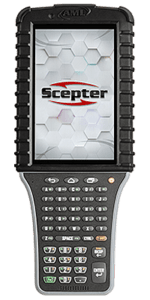

The Scepter mobile computer brings the “big screen” to the rugged mobile device marketplace. With a 5″ LCD it offers the largest display available on any non-tablet device. A larger display is beneficial for reviewing more data and faster task completion. The Scepter has various barcode scan engines such as 2D barcode scanning capabilities. Powered by Android, the Scepter is perfectly suited for either cloud-based or on-premise inventory management systems, using modern terminal emulation clients or the onboard web browser.
It’s also rich with a variety of options such as a pistol-grip handle, multiple keypad options, and a variety of barcode scan engines to accommodate different application requirements. Specifically designed for industrial applications, the Scepter defines ruggedness and reliability, and raises the bar when it comes to performance.
The Scepter was engineered for manufacturing and warehouse barcode scanning applications, and more specifically, for inventory control tasks. The oversized 5″ LCD offers plenty of screen space to accommodate more viewable data, especially for web-based applications. The added capability of long range barcode scanning makes the Scepter the ideal choice for distribution centers and with 2D barcode scanning capability, any barcode can be read in any orientation. While Windows-based barcode scanning devices are being retired in the industrial markets, rugged handheld computers running the Android operating system are the most ideal replacement devices.
Every Product Includes
Top Features
- Powered by Android 7.1 (Nougat)
- 5″ LCD with capacitive touchscreen
- Integrated flashlight
- Optional camera
- Multiple barcode scan engine options
- 802.11 abgn radio
- 47-key backlit alphanumeric keypad
- 41-key backlit numeric/function keypad
The Scepter is the perfect all-day, multi-shift mobile computer for virtually any data collection application.
Designed specifically for challenging environments such as Manufacturing, Distribution, and Warehousing, any task is performed with ease using the Scepter.
Common Tasks
- Receiving
- Put-Away
- Replenishment
- Picking
- Cycle Counts
- Kitting
- Returns
- Work-in-Process Tracking

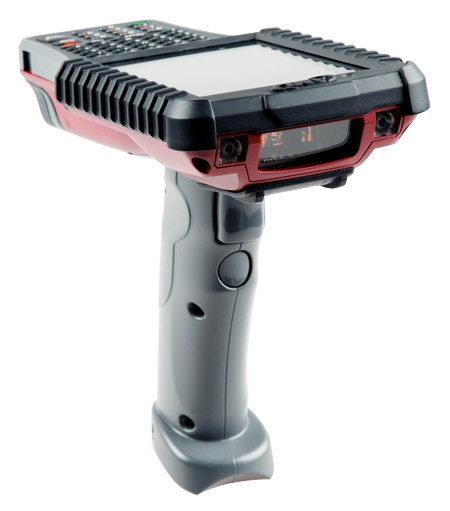

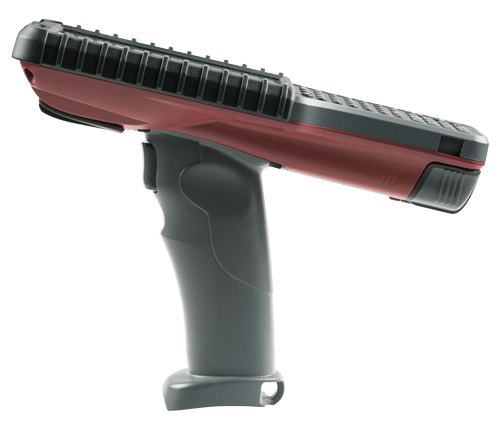

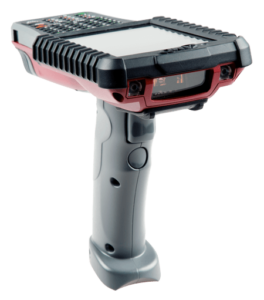

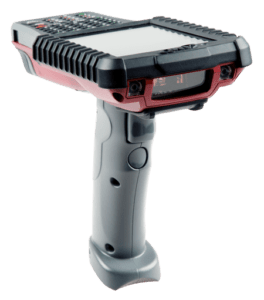

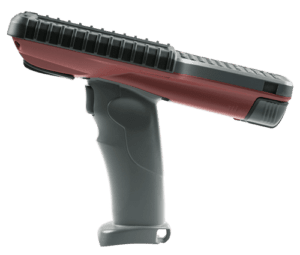

Users tasked with all-day use of a mobile computer will appreciate the engineering put into the American-Made Scepter. The model equipped with a pistol grip handle weighs in at 2 pounds (680g) and is extremely well balanced over the handle, making for comfortable operation even over long stretches of time.
The 24.8 watt-hour battery will last up to 8 ½ hours based on scanning a barcode every 10 seconds and the integrated flashlight is a pleasant convenience in those dark corners of the warehouse. When it comes to the fundamental needs of the warehouse worker, we’ve thought of everything… and the result was the Scepter.
APPLICATIONS
Remote Desktop
Access a desktop computer from a mobile computer interface to control applications and run processes via the Remote Desktop Connection.
Manufacturing
Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.
Warehouse / Distribution
From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.
Terminal Emulation
Terminal Emulation over Telnet is still a reliable and efficient means of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld.
SPECIFICATIONS
Processor
Quad Core processor 1GHz
Operating System
Android 7.1 (Nougat)
Display
5.0″ – 480 x 800 TFT LCD
Projected Capacitive Multi-touch
Optically Bonded
Hardened/Tempered Glass
550+ NIT Backlight (Sunlight Readable)
Memory (RAM)
2GB Dual Channel DDR3L
Internal Storage
4GB eMMC
Removable Storage
UHS-1 SDXC CARD
Graphics
Integrated Vivante video graphic subsystem

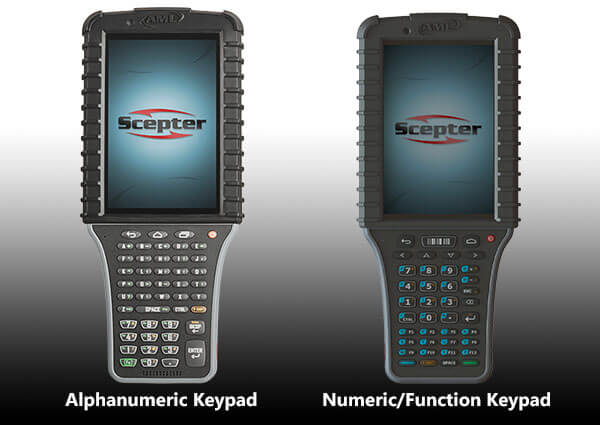

Keypad
Alphanumeric tactile feedback – backlit, 47 keys
Numeric/Function tactile feedback – backlit, 41-keys
Trigger
Dual Trigger Design (Scan Engine / Flashlight)
Audio
Built-in 1W Speaker
Headphone/Mic port (3.5mm standard CTIA Phone Jack)
WLAN
802.11abgn Dual Band (2.4GHz / 5GHz), 2×2 MIMO
WPAN
BLE 4.0 Dual Mode
Barcode Scanner
2D Imager
Near/Far 2D Imager Choosing the Right Barcode Scanning Technology
Camera (optional)
5MP with Autofocus
Main Battery
7.26 Volt, 3350 mAh (24.3 watt-hours), Lithium-Ion
Backup Battery
3 Watt-hour Lithium-Ion
Sensors
- Ambient Light sensor
- Accelerometer
- Haptic Feedback
- LED Flashlight
Cradle Port
Charge/Power Device
USB Host
USB Client
Dimensions
9.5″ x 4″ x 6.9″ (242mm x 101mm x 176mm)
Weight
24oz (680g)
Operating Temp
-20° C to 50° C / -4° F to 122° F
Drop Rating
6 Feet / 1.829 Meters
Sealing
IP65
Storage Temp
-20° C to 85° C / -4° F to 185° F
ACCESSORIES
Charging Cradle
ACC-7725
The ACC-7725 Mobile Computer Charging Cradle charges any M7700 Striker or M7800 Scepter Mobile Computer and the spare battery.
4-Position Charging Cradle
ACC-7735
Charge up to four AML Scepter or Striker mobile computers at one time, with one device using the ACC-7735.
Mobile Charging Cradle
ACC-7736
Designed for forklift applications, the Mobile Charging Cradle holds and charges one Scepter or Striker unit. Mounting hardware not included.
Mobile Cradle (Non-charging)
ACC-7738
The Non-Charging Mobile Cradle allows the Scepter and Striker units to be secured on a forklift. Mounting hardware not included.
Spare Battery
180-7800
Spare Battery, 3350 mAh, 24.8 watt-hours
4-Position Battery Charger
ACC-7037
Charge up to four AML approved, handheld batteries at one time, with one device.

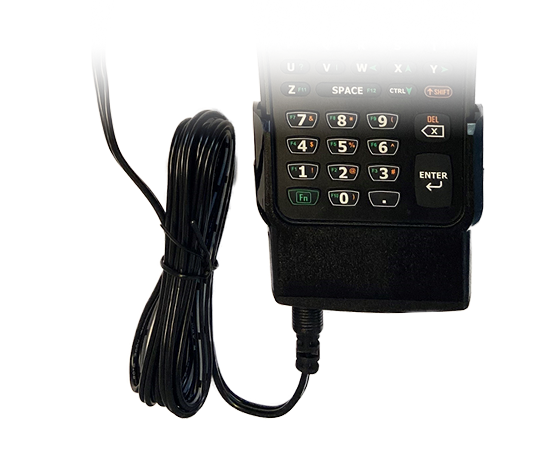

Inline Charger
ACC-7715-PS
If you store your mobile computers in a locker or another compact space, the inline charger is a great option for charging your Scepter, Striker or Solo mobile computers. No cradle is necessary. The inline charger is also ideal for keeping your devices charged on a forklift. The PWR-8050US power supply is included.
Holster
CAS-7801H
Carry an AML Scepter mobile computer in this convenient holster. Belt sold separately (CAS-BELT).
Holster Belt Strap
CAS-BELT
Adjustable belt strap with plastic quick-release buckle for Scepter and Striker holsters. The belt is 46 inches in length and 2 inches wide.
Wrist Lanyard
CAS-7800LD
The Scepter Wrist Lanyard provides an extra layer of security to prevent drops.
Antimicrobial Screen Protector
ACC-M78AMSP
Protect the LCD screen from scratches by adding an antimicrobial screen protector to your AML Scepter. The oleophobic coating makes wiping away fingerprints easier and also repels dust. Installation kit included.
UV-Locker
UVL432-1000
UV-Locker™ irradiates its contents with ultraviolet-C light (UVC) to sanitize your devices. Simply plug UV Locker into a standard 110VAC wall outlet, place your devices inside, set the adjustable timer, and then push start.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
