The Striker, considered the lightweight version of the Scepter, is also perfectly suited for either cloud-based or on-premise inventory management systems.
Products
OVERVIEW
APPLICATIONS
SPECIFICATIONS
ACCESSORIES
WARRANTIES
HELPFUL DOCUMENTS
CASE STUDIES
OVERVIEW
NOTICE: The AML Striker has been discontinued. The StrikerX is the recommended replacement.
Durability and Versatility for Enterprise Mobility in an Android Handheld Computer

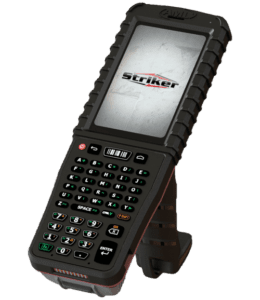

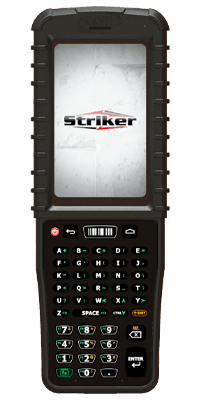

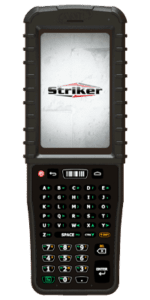

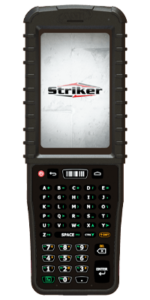

Striker is the continuation of AML’s development of American-Made, Android® mobile computers. A smaller, more lightweight version of our popular Scepter mobile computer, Striker delivers on affordability, durability and versatility. The combination of these attributes makes Striker the ideal android mobile computer for barcode scanning in a wide variety of applications ranging from distribution, manufacturing, retail, and commercial deployments.
Regardless if the task at hand is in a heavy-duty industrial environment like a manufacturing plant, or the relatively docile surroundings of a retail store, Striker will excel in both. It has the durability and ruggedness required by “heavy hands” and tough surroundings, while still being light, compact and comfortable for back-office and retail store floor applications.
Near/Far Barcode Scanning with the Striker

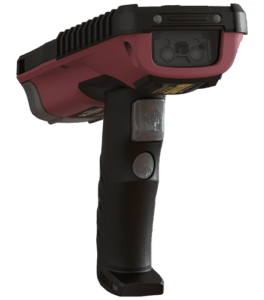

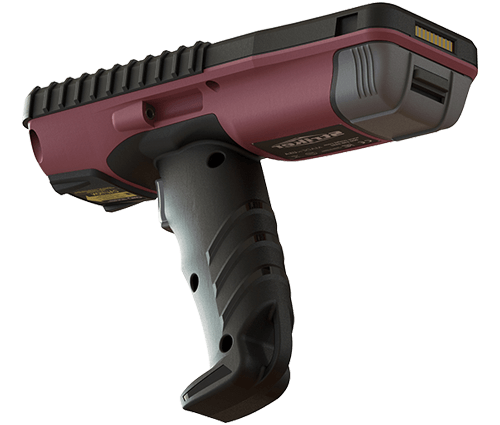

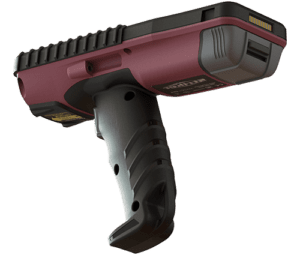

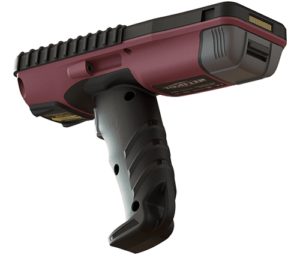

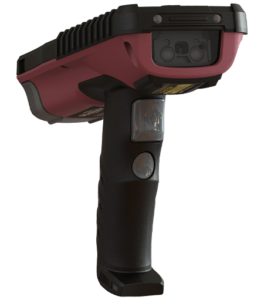

Striker can be tailored to meet specific application requirements such as the choice between 1D or 2D barcode scanners. Users can also select to use a pistol grip handle or to add a camera option if desired. A common use case for the Striker is an inventory scanner so the tactile keypad offers more accuracy and certainty for data entry, and the integrated dual-beam flashlight is incredibly useful in those dark corners of the warehouse.
As a barcode scanning handheld computer, no other product offers a comparable degree of durability and versatility, at such an affordable price than the American-Made Striker mobile computer from AML.
Mobile Device Management for IT Managers
The Striker mobile computer comes with several AML applications that ease configuration and allows users to tailor the device performance to meet their application needs. AML Setup simplifies configuring and deploying multiple Strikers by creating QR codes that when scanned will configure the device with pre-determined settings. Admins can create these barcodes using AML Console. AML Setup also works hand-in-hand with AML Device Manager, the mobile device management software (MDM) developed specifically for AML products. With Device Manager, admins can remotely configure, update and monitor device performance in real-time. The web-based application offers a host of features beyond just device configuration, including two-way messaging, remote control of devices, and locating missing devices.
The AML Android Mobile Computer Provides Efficient Barcode Scanning
The AML Android Mobile Computer is affordable, durable, and versatile. It is the ideal tool for barcode scanning across various applications. Its heavy-duty design will hold up well in any environment, yet it is light and compact for easy carrying. Best of all this mobile computer can be tailored to meet specific requirements.
Barcode Data Collection Software

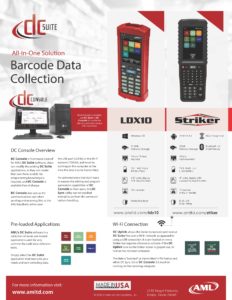

In addition to the built-in utilities, our popular DC Suite software for simple batch data collection
applications is preloaded on Striker. The software comes with seven pre-written applications that will cover the most common barcode data capture tasks, like cycle counting.
Striker comes preloaded with Ivanti’s Velocity terminal emulation software powered by Wavelink. The software will run in demo mode until activated with a license which is sold separately. For users who are more familiar with telnet connections to legacy systems, Striker is preloaded with a basic, text-based terminal emulation client specifically for VT220 applications. This TE client from Glink is licensed and ready to use.

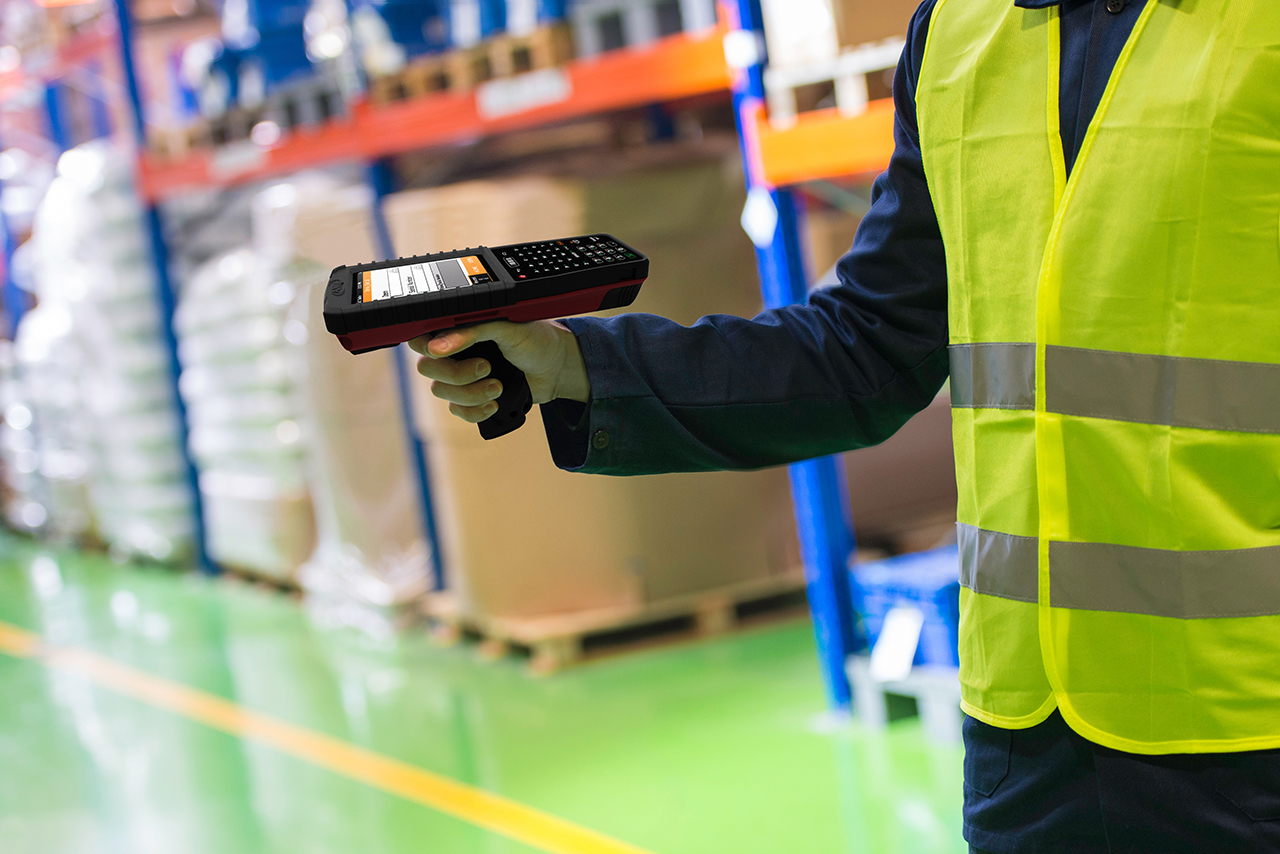

Striker is ideal for manufacturing and warehouse barcode scanning for inventory control applications due to its size, weight, and ergonomic design. The added feature of long-range barcode scanning emphasizes its versatility for use in distribution centers. Rugged Android-based handheld computers are quickly displacing Windows-based barcode scanning devices. In the industrial markets, Striker is leading the way as the ideal contemporary replacement for legacy devices.
Every Product Includes
Top Features
- High performance architecture
- Powered by Android 8.1 (Oreo)
- 4″ LCD with capacitive touchscreen
- Integrated flashlight
- Accommodates multiple scan engines
- 802.11a/b/g/n/ac radio
- 47-key alphanumeric keypad
- Integrated two-watt speaker
Industry Use and Sample Tasks
APPLICATIONS
Retail / Back Office
Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.
Manufacturing
Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.
Warehouse / Distribution
From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.
Terminal Emulation
Terminal emulation over Telnet is still a reliable and efficient method of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld. The Striker is preloaded with a Glink VT220 license. The Striker is also compatible with other terminal emulation software including Velocity and StayLinked.
SPECIFICATIONS
Operating System
Android 8.1 (Oreo)
Processor
Octa-Core at 1.8 GHz
Dynamic RAM
2GB Dual Channel DDR3L
Flash Memory
32GB eMMC
Memory Expansion
UHS-1 SDHC CARD (Optional)
Display
4″, 480 x 800 TFT LCD
450 NITs
Touch Screen
Projected Capacitive Multi-Touch
Optically bonded tempered glass
Tactile Keypad
Alphanumeric tactile feedback – 47 keys
WLAN
802.11a/b/g/n/ac Dual Band
WPAN
BLE 4.2 Smart Ready
Main Battery
24.3 Watt-hour Li-Ion
Barcode Scanning
2D Imager
Near/Far 2D Imager Choosing the Right Barcode Scanning Technology
Camera
13MP, 74.4 degrees, with Autofocus & Flash (Not available with Handle)
Other Features
Flashlight
Ambient Light Sensor
Size
With Handle: 8.5″ x 3.1″ x 6.1″ (21.6cm x 7.9cm x 15.5cm)
Without handle: 8.5″ x 3.1″ x 1.8″ (21.6cm x 7.9cm x 4.5cm)
Weight
With Handle: 20 oz.
Without Handle: 17 oz.
Impact Rating
6-foot drop to concrete
Environmental Sealing
IP65
Operating Temperature
-4° to 122° F
(-20° C to 50° C)
ACCESSORIES

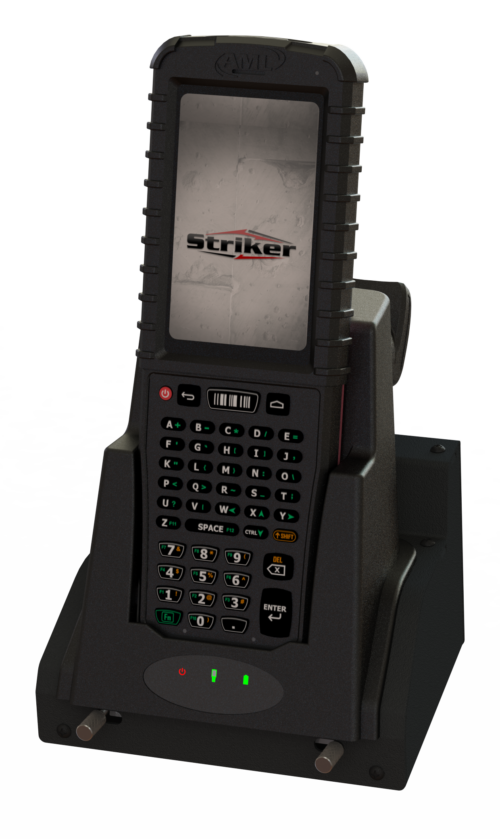

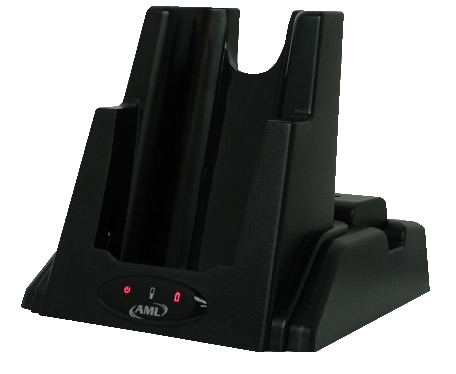

Charging Cradle
ACC-7725
The ACC-7725 Mobile Computer Charging Cradle charges any M7700 Striker or M7800 Scepter Mobile Computer and the spare battery.

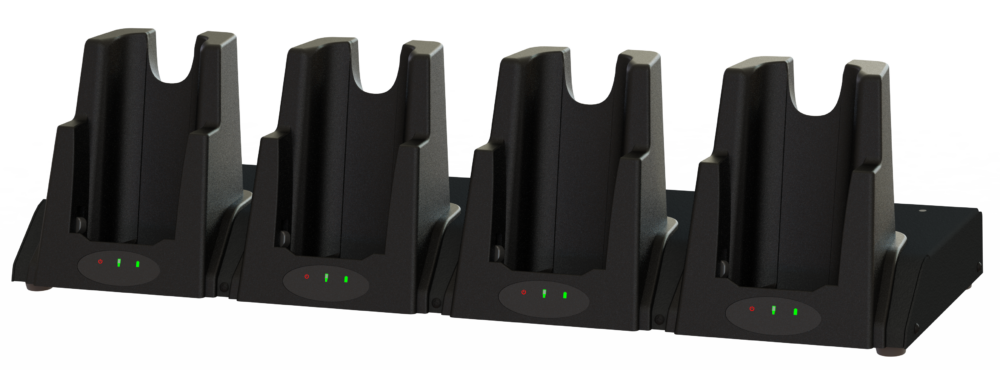

4-Position Charging Cradle
ACC-7735
Charge up to four AML Scepter or Striker mobile computers at one time, with one device using the ACC-7735.
Mobile Charging Cradle
ACC-7736
Designed for forklift applications, the Mobile Charging Cradle holds and charges one Scepter or Striker unit. Mounting hardware not included.
Mobile Cradle (Non-charging)
ACC-7738
The Non-Charging Mobile Cradle allows the Scepter and Striker units to be secured on a forklift. Mounting hardware not included.
Spare Battery
180-7800
Spare Battery, 3350 mAh, 24.8 watt-hours
4-Position Battery Charger
ACC-7037
Charge up to four AML approved, handheld batteries at one time, with one device.
Inline Charger
ACC-7715-PS
If you store your mobile computers in a locker or another compact space, the inline charger is a great option for charging your Scepter, Striker or Solo mobile computers. No cradle is necessary. The inline charger is also ideal for keeping your devices charged on a forklift. The PWR-8050US power supply is included.
Holster
CAS-7701H
Carry an AML Striker mobile computer in this convenient holster. Belt sold separately (CAS-BELT).
Holster Belt Strap
CAS-BELT
Adjustable belt strap with plastic quick-release buckle for Scepter and Striker holsters. The belt is 46 inches in length and 2 inches wide.
Wrist Lanyard
CAS-7800LD
The Striker Wrist Lanyard provides an extra layer of security to prevent drops.
Hand Strap
CAS-7700HS
The Hand Strap is designed for the non-handle version of Striker. Grip the device firmly in the palm of your hand.

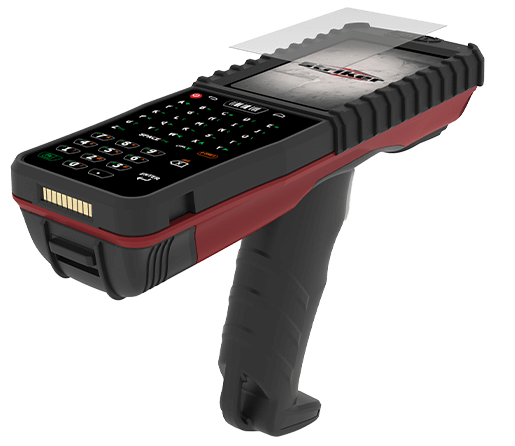

Antimicrobial Screen Protector
ACC-M77AMSP
Protect the LCD screen from scratches by adding an antimicrobial screen protector to your AML Striker. The oleophobic coating makes wiping away fingerprints easier and also repels dust. Installation kit included.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
