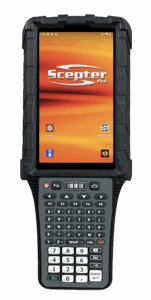

The Scepter Pro mobile computer sets a new standard in mobile computing with an impressive 5.5″ AMOLED display with 1080 x 1920 resolution.
Products
OVERVIEW
APPLICATIONS
SPECIFICATIONS
ACCESSORIES
WARRANTIES
HELPFUL DOCUMENTS
CASE STUDIES
OVERVIEW
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);
Operating System
Manufacturing
Made in USA

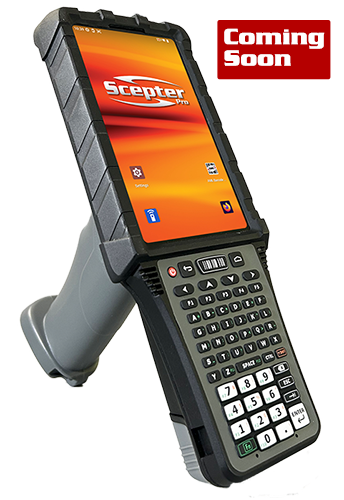

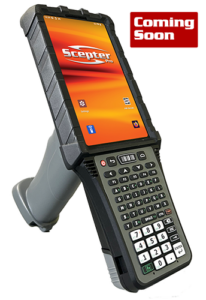

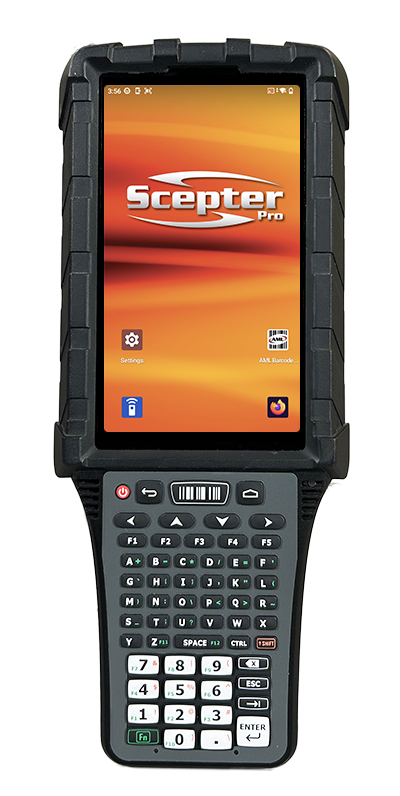

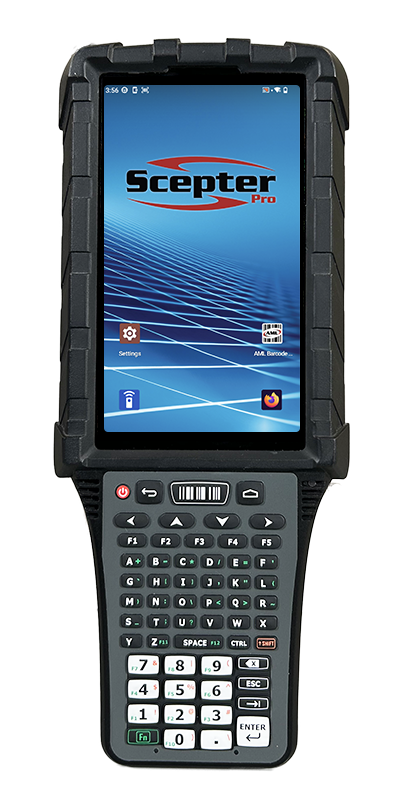

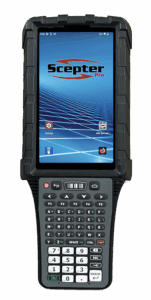

Mobile Computer with High Resolution AMOLED 5.5″ Display

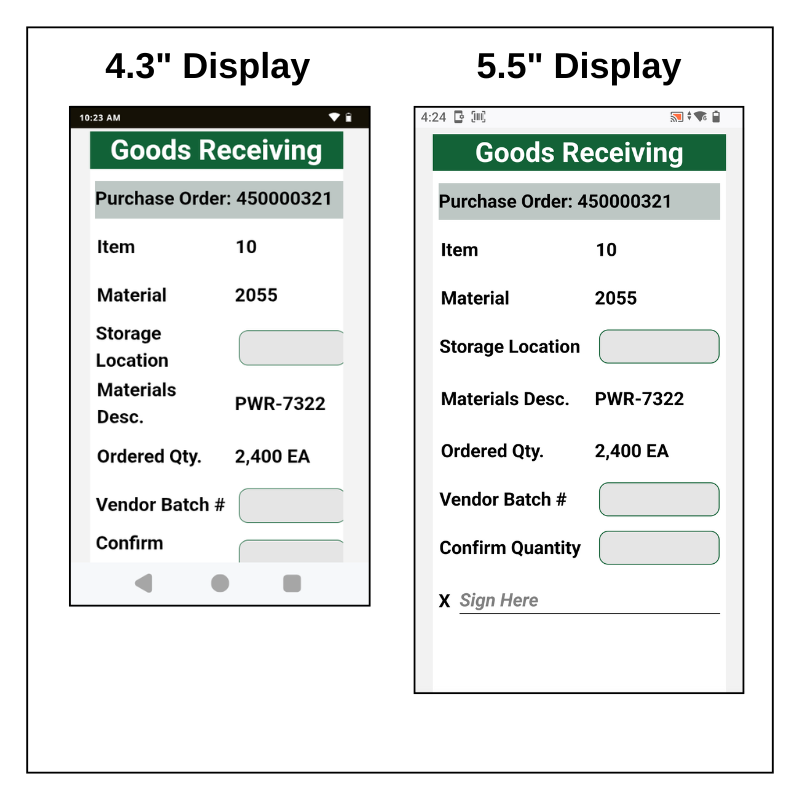

The Scepter Pro represents the next generation in American-Made, Android-based rugged mobile computers from AML. Exceeding the display size of its predecessor, the Scepter Pro features a 5.5” AMOLED display with stunning 1080 x 1920 resolution. The clarity and resolution are unmatched by any other mobile computer in its class, and the larger screen puts more viewable data in front of the user out in the field.
Like our other industrial mobile computers, Scepter Pro is now powered by the Qualcomm® QCS6490, a long-life processor (supported through 2036) running at speeds up to 2.7GHz, delivering enough power and performance to handle even the most demanding applications. Complemented with an integrated Wi-Fi 6E WLAN radio, Scepter Pro will connect to any existing wireless network and is ready for future expansion as the need arises. Your future is secure with a processing platform that can handle the toughest of tasks and a Wi-Fi radio that is already future-proofed.

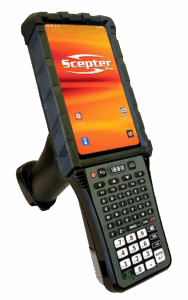

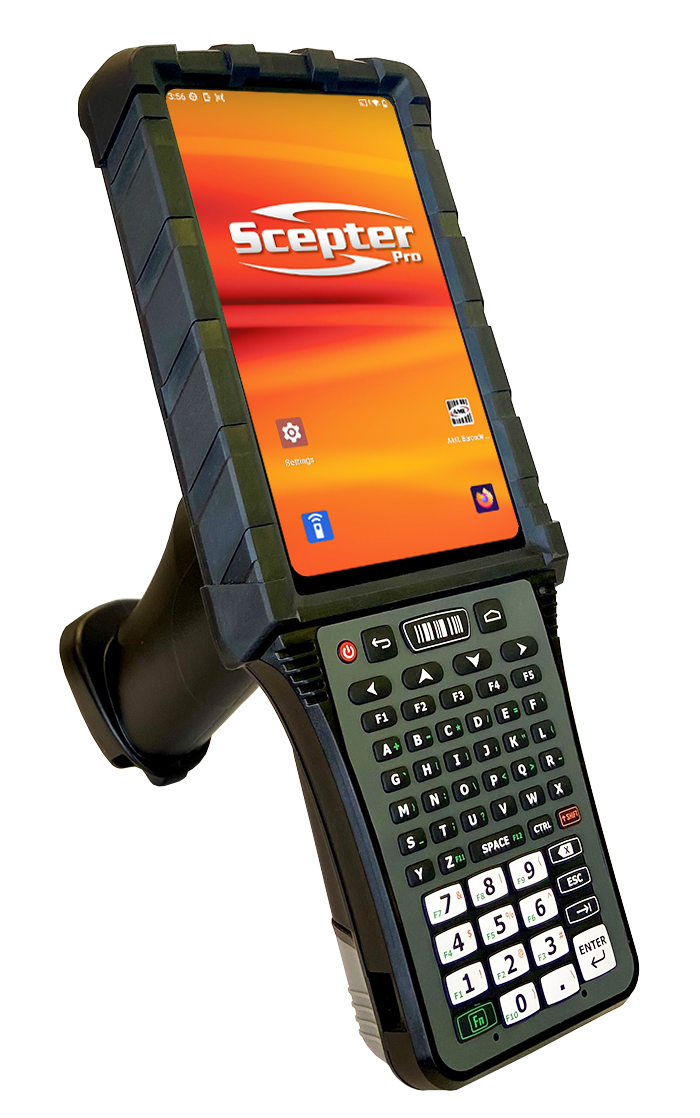

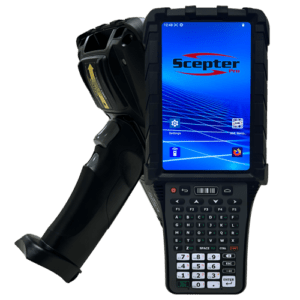

The Scepter Pro is rich with a variety of options such as a pistol-grip handle, multiple keypad options, and a variety of barcode scan engines to accommodate different application requirements.
It doesn’t matter if the host application is a legacy, on-premise system using a terminal emulation interface, or a cloud-based system utilizing a web browser or a dedicated APK, Scepter Pro is up to the task. There are no application requirements that the Scepter Pro can’t handle. It was specifically designed for industrial application requirements, and for all-day, every day use.

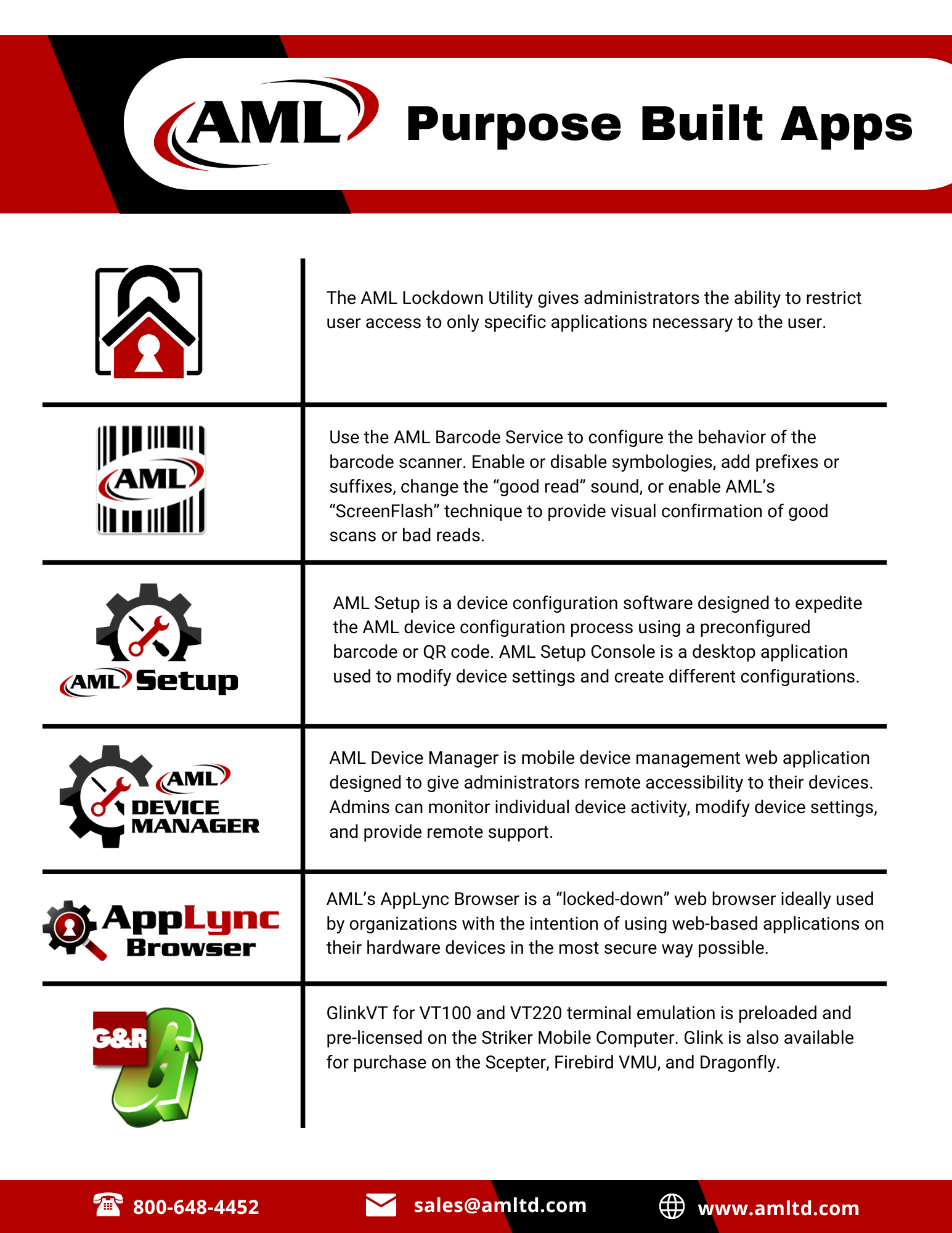

Scepter Pro comes packed with pre-loaded software applications that make setup, configuration and deployment a breeze. AML Setup allows administrators to create barcodes that are scanned to quickly configure devices. AML Lockdown restricts user access and permissions. AML Barcode allows users to manipulate the behavior of the barcode scanner. AML Device Manager is a paid option that works in conjunction with AML Setup to give admins complete remote access and control of their devices, regardless of where they are deployed.
Scepter Pro also comes preloaded with a pre-licensed VT100/VT220 terminal emulation client (Glink) as well as our popular data collection software, DC Suite. With our license-free DC Suite software, users can perform simple data collection tasks and gather data for importing into spreadsheets and host software applications.
Every Product Includes
Top Features
- Powered by Android 13+
- 5.5″ AMOLED display with capacitive touchscreen
- Integrated flashlight
- 13MP camera included
- Multiple barcode scan engine options
- 802.11ax 6E radio

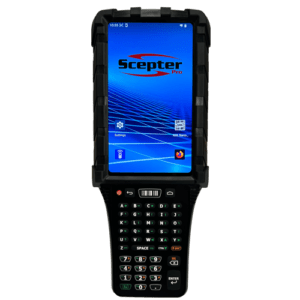

- 47-key and 58-key (function and arrow keys) keypad options
- 25 watt-hour battery
Industry Use and Sample Tasks
- Receiving
- Put-Away
- Replenishment
- Picking
- Cycle Counts
- Kitting
- Returns
- Work-in-Process Tracking
APPLICATIONS
Retail / Back Office
Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.
Manufacturing
Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.
Warehouse / Distribution
From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.
Terminal Emulation
Terminal emulation over Telnet is still a reliable and efficient method of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld. The Scepter Pro is preloaded with a Glink VT220 license. The Scepter Pro is also compatible with other terminal emulation software including Velocity and StayLinked.
SPECIFICATIONS
Operating System
Android 13+
Processor
Qualcomm® QCS6490 Octa-core at 2.7 GHz
Dynamic RAM
4GB LPDDR4
Internal Storage
64GB Flash
Display
5.5″, 1080 x 1920 AMOLED Display
500 NITS
Touchscreen
Capacitive Multi-touch
Gorilla® Glass 5
Optically Bonded
Tactile Keypad
Alphanumeric tactile feedback – 47 keys or 58 keys
WLAN
802.11ax (Wi-Fi 6E)
WPAN
BLE 5.2 Dual Mode
Main Battery
25 Watt-hour Li-Ion
Barcode Scanning
2D Imager ( 2.4″ up to 3ft” )
Near/Far 2D Imager ( 4″ up to 66ft )
Camera
13MP, 74.4 degrees, with Autofocus & Flash
Other Features
Flashlight
Ambient Light Sensor
Accelerometer
Size
With Handle: 9.6″ x 4″ x 7″ (24.3cm x 10.1cm x 17.8cm)
Weight
With Handle: 24 oz.
Impact Rating
6-foot drop to concrete
Environmental Sealing
IP65
Operating Temperature
-4° to 122° F
(-20° C to 50° C)
Audio
Built-in 2W Speaker
Dual Microphone
ACCESSORIES

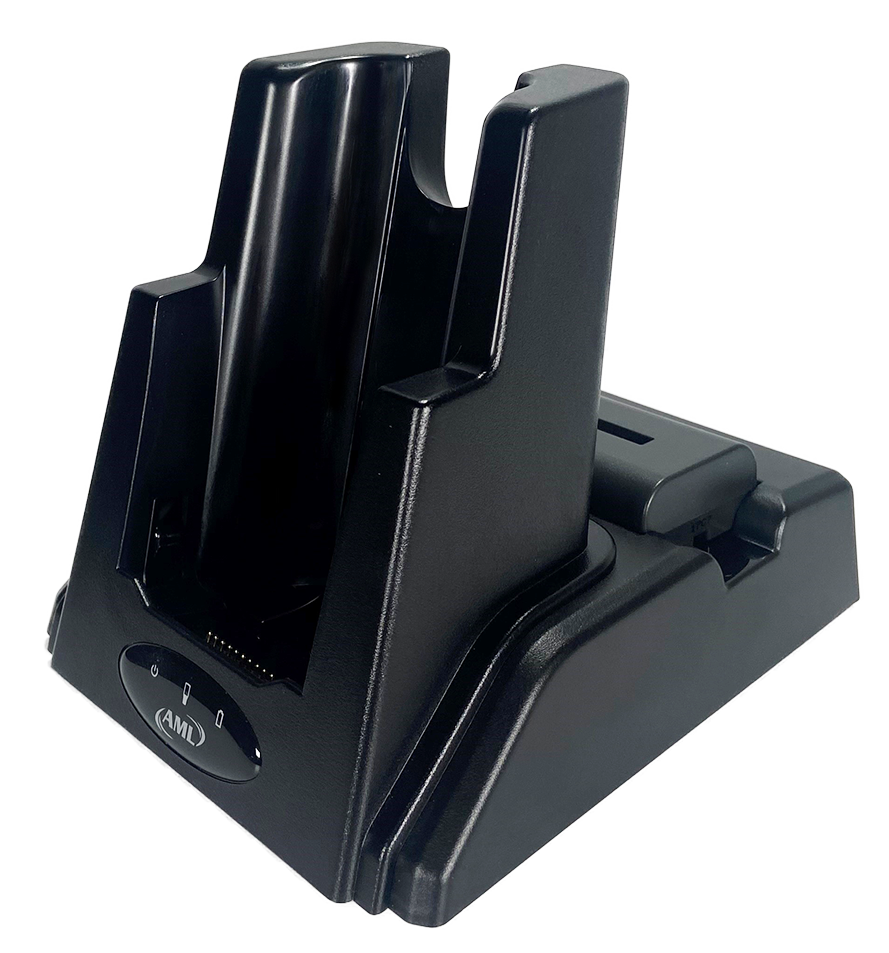

Charging Cradle
ACC-7725
The ACC-7725 Mobile Computer Charging Cradle charges any M8800 Scepter Pro and the spare battery.
4-Position Charging Cradle
ACC-7735
Charge up to four AML Scepter Pro mobile computers at one time, with one device using the ACC-7735.

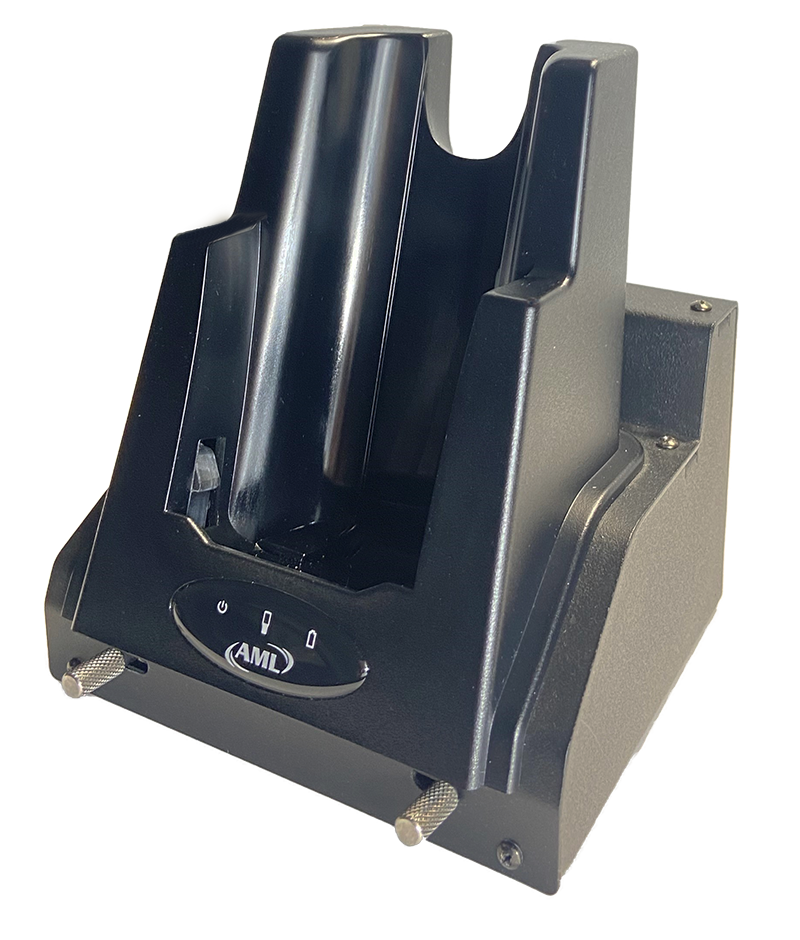

Mobile Charging Cradle
ACC-7736
Designed for forklift applications, the Mobile Charging Cradle holds and charges one Scepter Pro unit. Mounting hardware not included.
Mobile Cradle (Non-charging)
ACC-7738
The Non-Charging Mobile Cradle allows the Scepter Pro units to be secured on a forklift. Mounting hardware not included.
Spare Battery
180-7800
Spare Battery, 25 watt-hours
4-Position Battery Charger
ACC-7037
Charge up to four AML-approved, handheld batteries at one time, with one device.

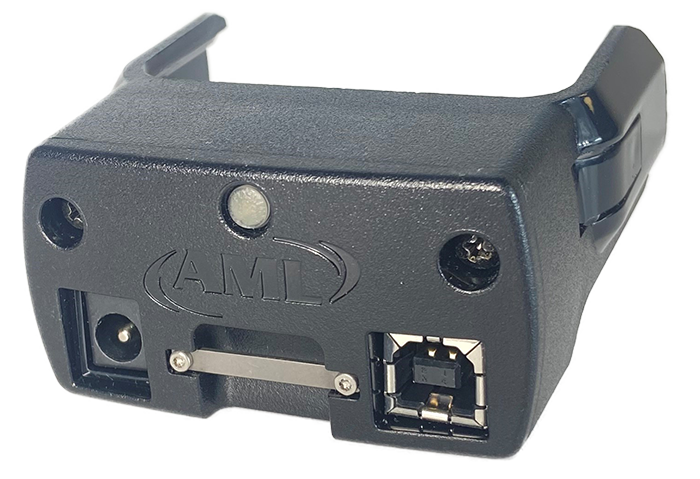

Inline Charger
ACC-7715-PS
If you store your mobile computers in a locker or another compact space, the inline charger is a great option for charging your Scepter Pro mobile computers. No cradle is necessary. The inline charger is also ideal for keeping your devices charged on a forklift. The PWR-8050US power supply is included.

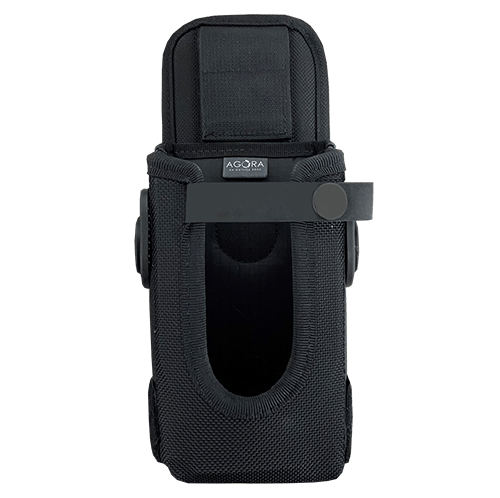

Holster
CAS-7801H
Carry an AML Scepter Pro mobile computer in this convenient holster. Belt sold separately (CAS-BELT).

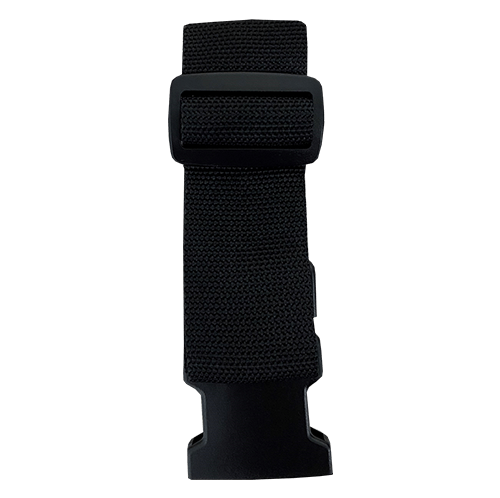

Holster Belt Strap
CAS-BELT
Adjustable belt strap with plastic quick-release buckle for Scepter Pro holster. The belt is 46 inches in length and 2 inches wide.

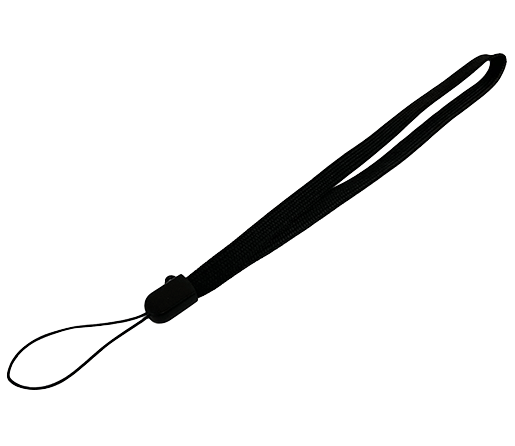

Wrist Lanyard
CAS-7800LD
The Scepter Pro Wrist Lanyard provides an extra layer of security to prevent drops.
Screen Protector
ACC-M88SP
The optional screen protector for the Scepter Pro protects the display. The screen protector is shatterproof, shock-absorbing, and scratch-resistant. The oleophobic coating repels oils, making it easier to wipe away fingerprints.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
