OVERVIEW
Increase Forklift Driver Efficiency with Vehicle Mounted Computers
The key to productivity on a forklift, or motorized pallet jack, is giving the operator all of the mobility tools they need to perform their tasks safely and efficiently. Whether the task is put-away, picking, shipping, or replenishment, mobile devices are a necessary tool. Historically, vehicle-mounted devices have been oversized and over-priced. Devices designed to provide a “full desktop” view of an application were big, bulky, and priced well above the cost of handheld devices. To make matters worse, they create a safety hazard because they impact the field of view of the operator.
AML’s Firebird Vehicle Mounted Computer changes all that. It’s the right-sized, right-priced forklift device for today’s distribution environments that rely heavily on mobile computers for inventory management. The 7” touchscreen works perfectly with native Android applications or contemporary terminal emulation clients, and our AppLync browser connects operators to secure websites and keeps them there.
Forklift Computers and Driver Safety

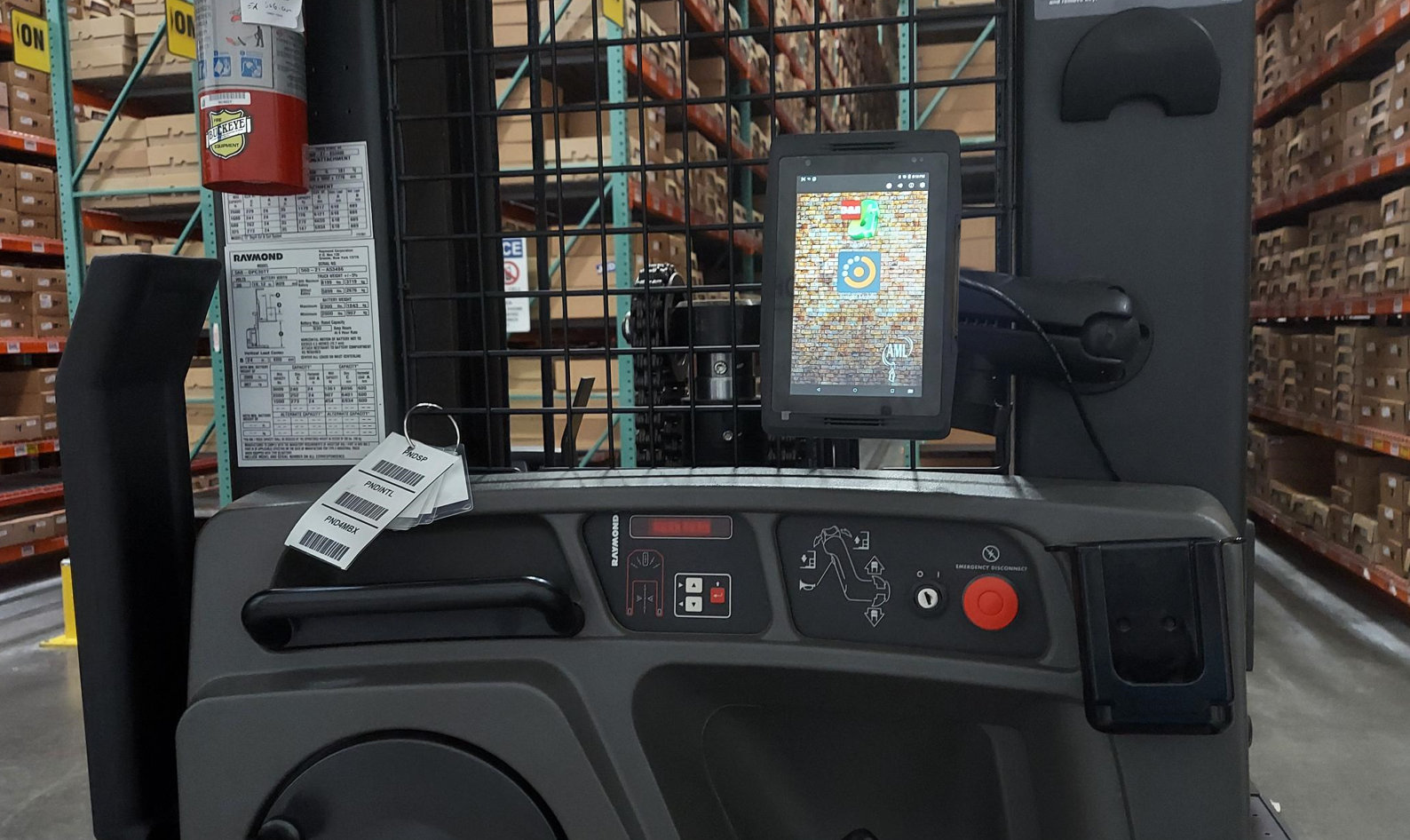

The Firebird’s overall size eliminates concerns about the operator’s field of vision being impaired. When mounted in the portrait orientation, the Firebird VMU offers a field of view up to 30% wider than competitive devices. Safety first, for the driver and anything in their path. The Firebird VMU can be easily mounted in either portrait or landscape orientation to virtually any forklift or motorized pallet jack using commercially available mounting accessories.
Scanning Barcodes While Operating a Forklift
Scan barcodes with the Firebird VMU using either tethered (USB) or Bluetooth connected scanners. Both can be easily stored on the forklift using mobile cradles. A USB scanner can draw power from the VMU while a Bluetooth scanner requires independent charging.
Mobile Device Management for VMUs
Like all AML products made in the USA, Firebird VMU comes equipped with preloaded applications, such as AML Setup for easy setup and deployment as well as optional software such as our AML Device Manager, the perfect tool for deploying and maintaining multiple devices and/or multiple locations. For IT Managers and support staff, AML Device Manager is a “must-have” for remotely managing handheld computers and vehicle mounted devices, especially if they are tasked with supporting devices deployed over multiple locations. AML Device Manager is a proprietary Mobile Device Management application, developed specifically for remote support and management of AML devices.
AML’s vehicle mounted computer provides all the tools a forklift operator needs to complete tasks efficiently while driving safely. It aids with put-away, picking, shipping, barcode scanning, and replenishment. At just 7”, its compact size eliminates concerns about vision impairment. Manage devices easily with applications suitable for both Android devices and terminal emulation clients.
Every Product Includes
Top Features
Industry Use and Sample Tasks
APPLICATIONS
Shipping and Receiving
Keep track of items that have been shipped and received in the warehouse or distribution center.
Receive Picking Orders
Utilize a mobile application to receive orders for picking. Update WMS when orders have been picked.
Stock Replenishment
Identify low-stock items and replenish shelves.
SPECIFICATIONS
Operating System
Android 8.1
Processor
Octa-core at 1.8 GHz
Memory (RAM)
2GB LPDDR3 SDRAM
Display
7″ LCD, 720 X 1280 resolution IPS Projective Capacitive Multi-touch
Audio
Dual 2W Speaker in Landscape mode, Dual mic port; Single Speaker in Portrait mode
Headphone/Mic port (3.5mm standard CTIA Phone Jack)
Power
5VDC, PoE (802.3af and 802.3at)
Dimensions
212mm W x 142mm H x 33mm D / 8.3″ W x 5.7″ H x 1.3″ D
Weight
1.25 lbs / 0.57 kg
Operating Temperature
0° to 40° C / 32° to 104° F
Barcode Scanning
Tethered USB
Bluetooth
WLAN / WPAN
802.11 a/b/g/n/ac Dual Band / BLE 4.2 Smart Ready
I/O Ports
DC Input (5V)
USB Host (2.0) x3
USB Type C (for debug/app development)
Mounting
VESA 75mm standard mount pattern
ACCESSORIES
Power Supply
PWR-5V4ADC24-06 or PWR-5V4ADC48-06
The Firebird operates on 5VDC. Most forklifts or motorized pallet jacks operate on higher voltages. Therefore, the utilization of a DC to DC Power Converter is required to convert the voltage from the vehicle to the appropriate voltage of the Firebird.
Adjustable Angle Mounting Bracket
ACC-0794
Quickly and easily mount the device to a wall or another flush surface. The mounting bracket allows you to choose your mounting angle (10° or 15°). Bracket includes kiosk mounting hardware.
Forklift Mount with Keyboard
ACC-0798
An optional keyboard accessory is available with the Firebird VMU. The mounting bracket and keyboard are included in the kit. Ram mount not included.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
