M7225 Wireless Handheld Computer
OVERVIEW
APPLICATIONS
SPECIFICATIONS
ACCESSORIES
WARRANTIES
HELPFUL DOCUMENTS
CASE STUDIES
OVERVIEW
NOTICE: The AML M7225 is now discontinued. Please contact us for replacement options.

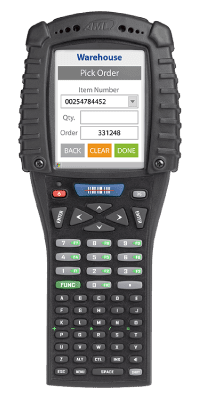

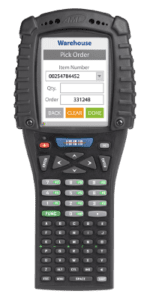

Tough and Versatile Wireless Handheld Computer
The M7225, a popular wireless handheld computer among users accustomed to using Windows®, is the ideal scanner for data collection applications in warehousing or retail back office environments. This device is durable for an industrial environment while lightweight and compact enough to be used in retail.

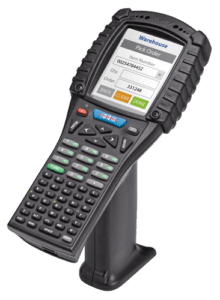

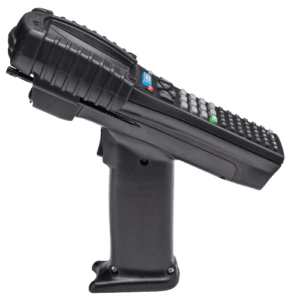

For virtually any barcode data collection application, the M7225 wireless handheld computer is the sensible solution. If you’re looking for a slightly larger screen than the LDX10 and a wireless scanning device with an optional pistol grip, this mobile computer is capable of completing the most common inventory tasks.
* The ACC-5925 cradle is required for charging.
Every Product Includes
- Pre-loaded Wavelink TE Client (license sold separately)
- Battery
- Standard one year warranty
Top Features
- Windows® CE 6.0 Pro
- 3.5” LCD with touch panel
- 802.11 bgn radio
- ScreenFlash Scan Verification
- Multiple barcode scan engine options
Industry Use and Sample Tasks
- Warehousing/Distribution, Manufacturing, Retail
- Inventory tracking, receiving, inventory transfers, picking, work-in-process tracking
APPLICATIONS
Manufacturing
Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.
Warehouse / Distribution
From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.
Terminal Emulation
Terminal Emulation over Telnet is still a reliable and efficient means of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld.
SPECIFICATIONS
Operating System
Windows® Embedded 6.0
Microprocessor
Samsung® S3C2440 @ 400 MHz
Memory (RAM)
128 MB
Memory (Flash Storage)
128 MB Integrated Flash ROM
Expansion
MicroSD Slot
LCD
3.5″ QVGA (320×240), 16-bit Color TFT LCD
Touch Screen
Resistive
Battery
7.4 Volt, 2600 mAh (19.2 watt-hours), Lithium-Ion
Physical Size
8.9″ L x 3.5″ W x 2.3″ D (225mm x 89mm x 57mm
Weight
17.6 ounces (w/o optional handle)
Sealing
IP54, NEMA 12
Operating Temperature
-20° to 50°C / -4° to 122°F
Drop Specification
5 ft. drop to concrete
Barcode Scanning (Options)
Standard Range Laser or 2D Omni-Imager Choosing the Right Barcode Scanning Technology
Keypad
55-key alphanumeric
Communications
Wireless: SUMMIT® 802.11abg High-Power radio
Batch: USB data transfer
User Feedback
ScreenFlash Scan Verification,
Integrated Beeper/Speaker,
Programmable Vibration Motor,
Good/Bad Read LED Indicator
ACCESSORIES

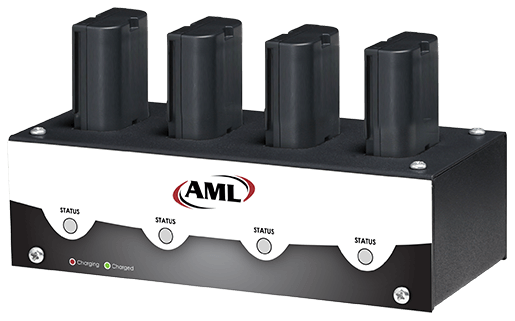

4-Position Battery Charger
ACC-7037
Charge up to four AML approved, handheld batteries at one time, with one device.

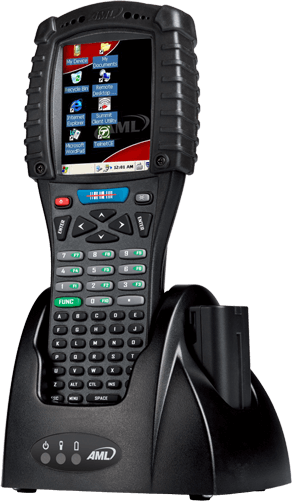

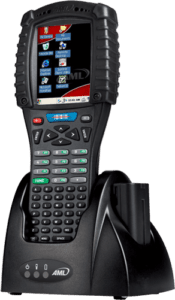

Charging Cradle
ACC-5925
Charge a compatible AML device and spare battery.
4-Position Handheld Charger
ACC-5935
Charge up to four compatible AML handhelds at one time, with one device.
Spare Battery
180-7800
Spare Battery, 3350 mAh, 24.8 watt-hours

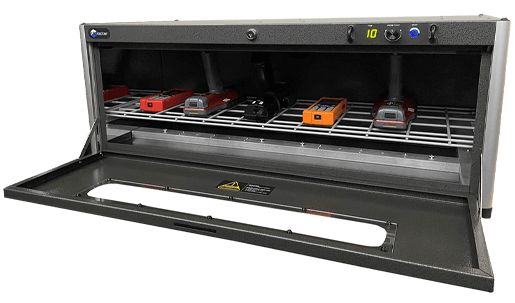

UV-Locker
UVL432-1000
UV-Locker™ irradiates its contents with ultraviolet-C light (UVC) to sanitize your devices. Simply plug UV-Locker into a standard 110VAC wall outlet, place your devices inside, set the adjustable timer, and then push start.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
HELPFUL DOCUMENTS
Data Sheets
Quick-Start Guides
Other Useful Documentation
