NOTICE: The AML KDT3 is now discontinued. Please contact us for replacement options.
Interactive Self-Service Kiosk Offers Enhanced User Experience

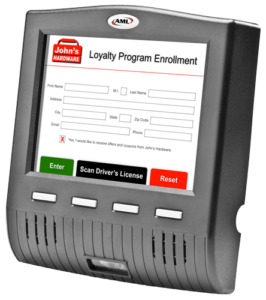

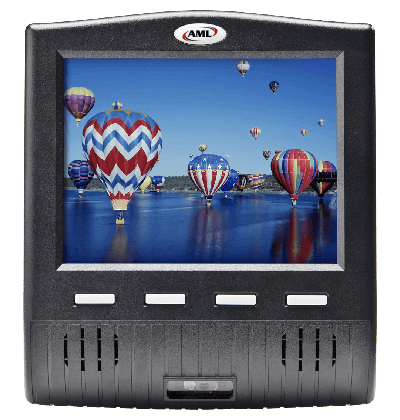

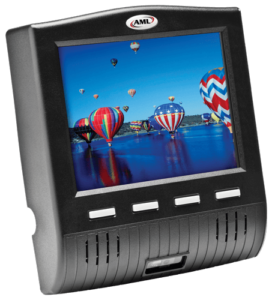

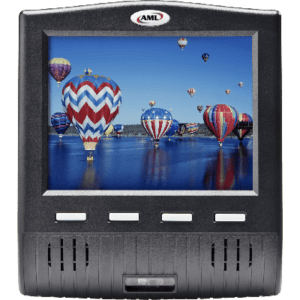

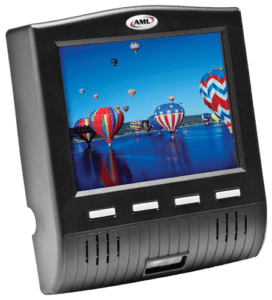

The KDT3 interactive retail kiosk is capable of running full screen video, playing stereo audio, scanning barcodes, and displaying stunning images on its SVGA color display.
The KDT3 is the ideal interactive kiosk for retail or commercial applications where the quality of the image and the delivery of the message is paramount. If a picture equals a thousand words, the KDT3 speaks volumes.
Every Product Includes
- Power-over-Ethernet (PoE) Ready
- Documentation
- Standard one year warranty
Top Features
- Windows CE 6.0 Pro

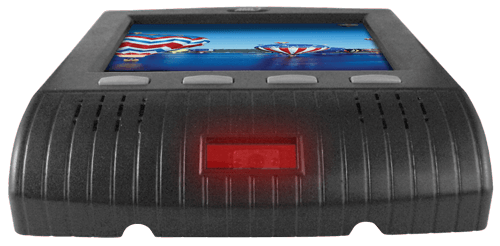

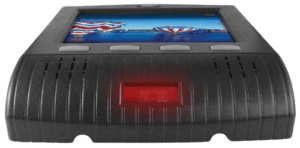

- Integrated barcode scanning
- 8.0” display with touchscreen
- Wired or wireless connectivity
- Power-over-ethernet (PoE)
Industry Use and Sample Tasks
- Retail, Hospitality

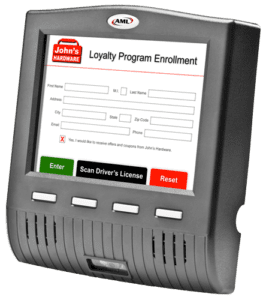

- Price-checking, loyalty programs, gift registry
APPLICATIONS
Price Checking
Self-service applications are becoming a fact of everyday life. Kiosks provide a better customer experience with the ability to check the price of an item more conveniently than tracking down a store associate. In some states, retail stores are required to use kiosk devices that are compliant with item pricing laws.
Employee Portal
Allow employees to access information regarding their benefits, request time off, or even clock in or out of the payroll system. Input methods may be on-screen keyboard, barcode scan, magnetic strip, or RFID card.
SPECIFICATIONS
Operating System
Windows© Embedded 6.0 R3
Microprocessor
Texas Instruments© OMAP3 @ 600 MHz
Memory (RAM)
128 MB
Memory (Flash Storage)
256 MB Integrated Flash ROM
Expansion
MicroSD Slot
LCD
8″ SVGA (800×600), 16-bit Color TFT LCD
Touch Screen
Resistive
Audio
Hi-Fi Digital Audio Codec; 16-bit Stereo DAC; Integrated Stereo Speakers
Power
Power-over-Ethernet (802.3af compliant) Ready; Optional 12V DC Adapter
Physical Size
8.5″ L x 9.4″ W x 2″ D
(215mm x 240mm x 50mm)
Weight
2.8lbs. (1.27kg)
Operating Temperature
-20° to 50°C / -4° to 122°F
Barcode Scanning (Options)
2D Omni-directional Imager; 1D Laser
Choosing the Right Barcode Scanning Technology
I/O Ports
USB OTG 2.0; RS-232
Communications
WLAN: Optional 802.11bgn radio
LAN: 10/100 Base-T Ethernet
Mounting
4 x 4mm Threaded Inserts; Optional VESA 75 Wall Mount Bracket (See Accessories)
ACCESSORIES

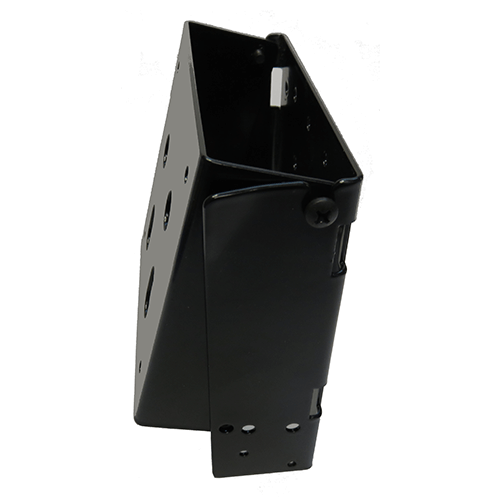

Adjustable Angle Mounting Bracket
ACC-0794
Quickly and easily mount the device to a wall, or other flush surface. The mounting bracket allows you to choose your mounting angle (10° or 15°). Bracket includes kiosk mounting hardware.
15° Quick Mount Wall Bracket
ACC-0759
Quickly and easily mount the device to a wall or another flush surface at a 15° backward tilt. The bracket includes kiosk mounting hardware.

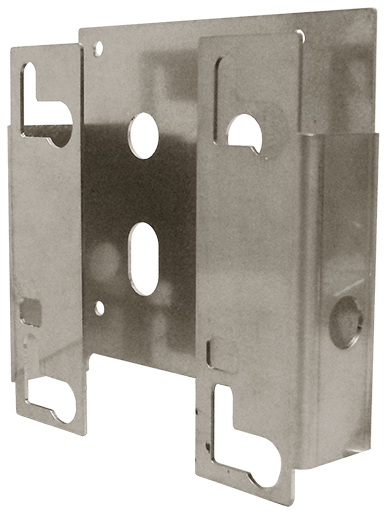

Quick Mount Wall Bracket
ACC-0780
Quickly and easily mount the Monarch to a wall, or other flush surface. Bracket includes kiosk mounting hardware.

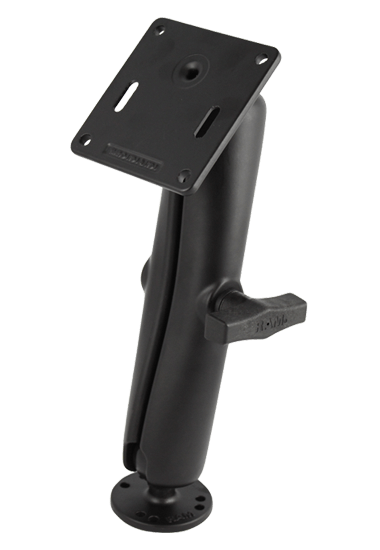

Table Top Mount
ACC-0761
Ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

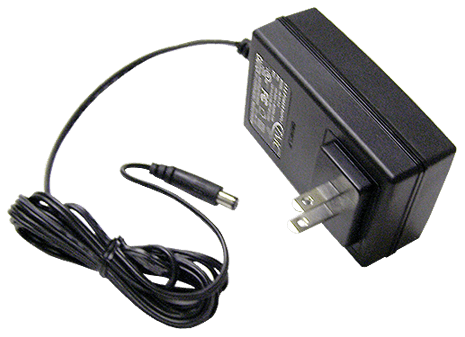

12V DC Adapter
PWR-8050
If the standard Power-over-Ethernet is not utilized, this 12V DC adapter is required to power the device.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
