Enterprise Self-Service Kiosk

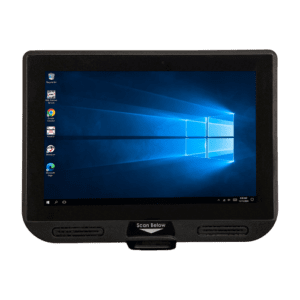

The Monarch Interactive Kiosk

Brings the Power of Information to the Fingertips

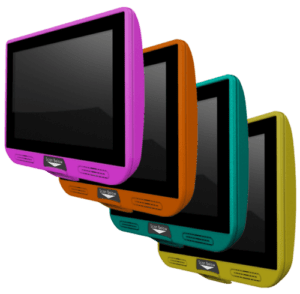

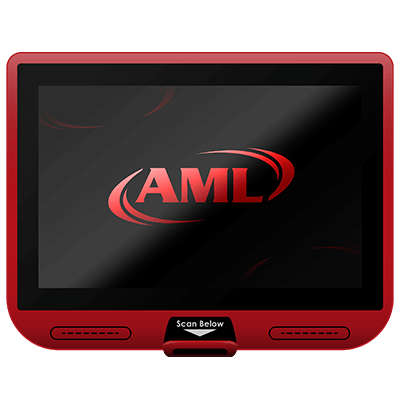

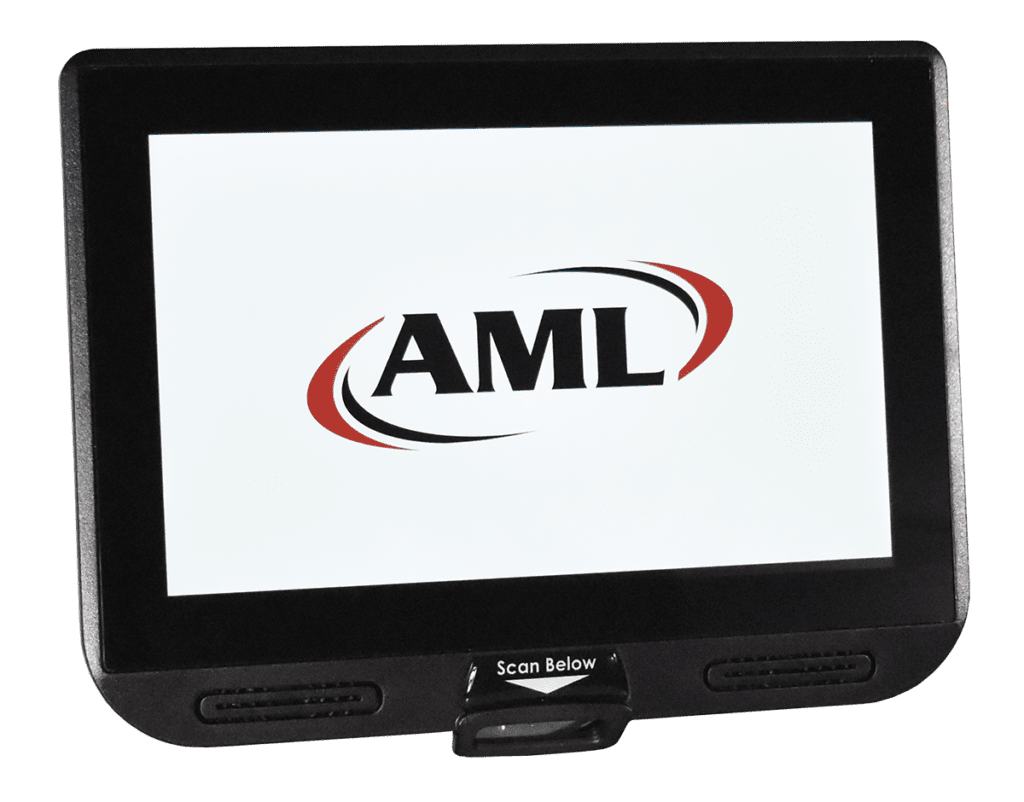

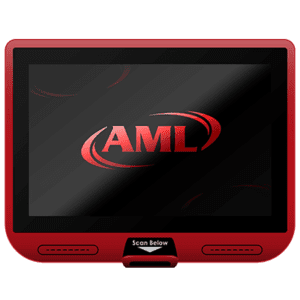

The Monarch combines the power of an all-in-one computer with a barcode-scanning kiosk. Developed as a built-for-purpose device and engineered with industrial-grade components, the Monarch outlasts and outperforms consumer-grade devices deployed into challenging environments. Utilizing x86-64 architecture, the Monarch can run Windows 10, Android, or Linux operating systems.

The sleek design and capacitive touchscreen help facilitate an intuitive experience for any user.

Power can be supplied over a Power-over-Ethernet equipped network, eliminating the restriction of having to place the device near a wall outlet.

Top Features

• 10.1″ Color Display with touchscreen

• Powerful x86 architecture

• Integrated barcode scanning

• Power-Over-Ethernet (PoE)

• HDMI output

• Optional printer

• Optional EMV/Magnetic Stripe Reader

• Optional HID Reader

With options such as a receipt/label printer, EMV reader, and HID reader, the Monarch can be configured for an almost limitless list of tasks and applications:

Retail

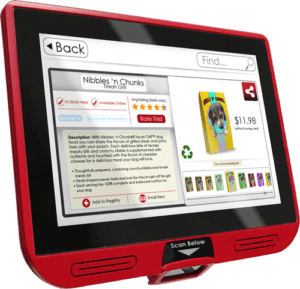

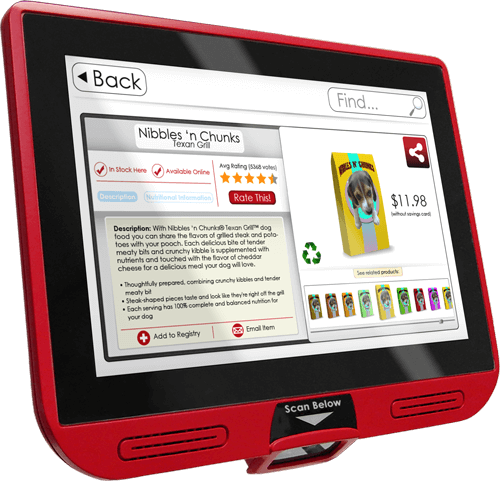

StoreScan Logo The Monarch brings the digital experience into the store, putting information at the immediate disposal of the consumer. Allowing the user to verify a price is easily done when the Monarch is running AML’s StoreScan software. Other useful applications include being able to check the balance on a gift card, locate a product in the store, check loyalty points, or even make a purchase. The list goes on and on as to what the Monarch can do to bridge the gap between the in-store visit and the omni-channel experience.

Commercial

Taking advantage of its x86-64 architecture, the Monarch makes the perfect time clock for more advanced applications where employee messaging is essential. It’s ideal for any check-in/check-out application like tool cribs and file rooms. It also makes the ideal way-finder for a busy lobby or a self-service kiosk for rental agreements and employment applications. Need a self-check-in portal for a day care, health club, or seminar? There’s no better small form-factor all-in-one device than the Monarch.

Hospitality

The Monarch’s small form-factor and PoE capability make it ideal for deploying multiple devices across large venues. Whether the need is to check the balance on a player card, buy electronic tickets to a show or play, or act as a self-service concierge, the Monarch is up to the task all day and every day.

Industrial

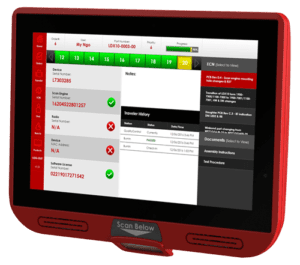

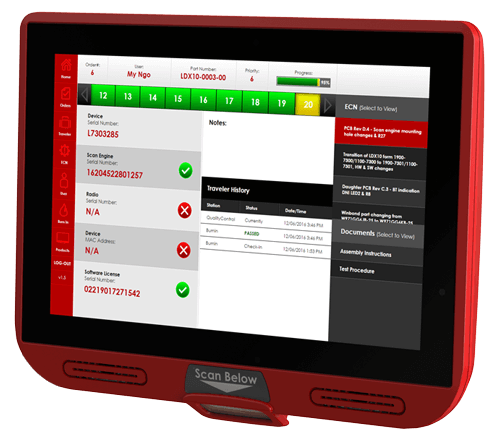

ACC-KDT10ENCL Protective Housing Using PCs and tablets on a shop floor is a recipe for disaster. But the Monarch is designed to be safely mounted on a wall, pole or table.
From there it can act as a time clock or host software for tracking labor or work-in-process inventory.

Worried about bumps and bruises? The Monarch has a stainless steel “wrap” available to protect the kiosk from mishaps.

What Our Clients Say

“Overall, the quality of AML products is superb and AML support is second to none.”

— Don S.

Applications

Self-Service

Self-service applications are becoming a fact of everyday life. Kiosks provide such services as price-checking, loyalty program enrollment and maintenance, locating services, gift registries, ordering at fast food and casual dining establishments and so much more.

Employee Portal

Allow employees to access information regarding their benefits, request time off, or even clock in or out of the payroll system. Input methods may be on-screen keyboard, barcode scan, magnetic strip, or RFID card.

Hospitality

Offer self-service options to customers for checking in, ordering food or drinks, concierge services, locating sites or establishments, checking flights and so much more.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Self-Service

Self-service applications are becoming a fact of everyday life. Kiosks provide such services as price-checking, loyalty program enrollment and maintenance, locating services, gift registries, ordering at fast food and casual dining establishments and so much more.

Employee Portal

Allow employees to access information regarding their benefits, request time off, or even clock in or out of the payroll system. Input methods may be on-screen keyboard, barcode scan, magnetic strip, or RFID card.

Hospitality

Offer self-service options to customers for checking in, ordering food or drinks, concierge services, locating sites or establishments, checking flights and so much more.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Specifications

Monarch Specifications
Operating System
Windows™ 10, Android and Linux
Processor
Intel© Atom™ E3825 1.33GHz 64-Bit Dual Core Processor
Memory (RAM)
2GB DDR3L 1066 MT/s
Display
10.1″ LCD, 1280 x 800 resolution IPS Projective Capacitive Multi-touch
Speaker
Stereo 3W
Power
5VDC, PoE (802.3af and 802.3at)
Dimensions
267mm W x 211mm H x 47mm D / 10.5″ W x 8.3″ H x 1.9″ D
Weight
2.15 lbs / 0.98 kg
Operating Temperature
0° to 40° C / 32° to 104° F
Barcode Scanning
2D Imager
I/O Ports
USB 2.0 x 2 • RJ45 Gigabit • Ethernet with PoE • Mini PCI Express • HDMI Output
WLAN
Optional: 802.11 a/b/g/n 2X2 with BT 4.0 Smart Ready
Optional: 4G LTE Cellular
Mounting
VESA 75mm standard mounting pattern

Accessories

Printer & Adjustable Angle Mount ACC-KDT10PRT2

The Monarch printer accessory attaches quickly and easily to the back of the Monarch and prints on 58mm wide receipt paper or linerless labels. The mounting bracket is adjustable to customize the angle required.

EMV Chip & Magstripe Reader Kit ACC-KDT10EMV

Scan cards or badges with either EMV or Magnetic Stripe Reader. This kit includes the EMV and MSR readers, mounting bracket and screws.

5V DC Adapter PWR-7150

If the standard Power-over-Ethernet is not utilized, this 5V DC adapter is required to power the device.

5V DC/6A Power Supply PWR-7035

Only required if using the ACC-KDT10PRT2 printer accessory.

Adjustable Angle Mounting Bracket ACC-0794

Quickly and easily mount the device to a wall, or other flush surface. The mounting bracket allows you to choose your mounting angle (10° or 15°). Bracket includes kiosk mounting hardware.

15° Quick Mount Wall Bracket ACC-0759

Quickly and easily mount the device to a wall, or other flush surface at a 15° backwards tilt. Bracket includes kiosk mounting hardware.

Quick Mount Wall Bracket ACC-0780

Quickly and easily mount the Monarch to a wall, or other flush surface. Bracket includes kiosk mounting hardware.

Protective Housing ACC-KDT10ENCL

The Monarch Protective Housing is a rugged brushed stainless steel enclosure that easily secures the Monarch to various surfaces and protects it from tampering and damage.

Table Top Mount ACC-0761

Ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

VESA 75 Table Stand ACC-V75STD

Steel tabletop stand with VESA 75 mounting pattern. Mount has a 90° tilt and easily rotates for optimal viewing angles.

Warranties

AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.

An Extended Warranty REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers failures as a result of normal wear and tear (not abuse).
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty may be purchased anytime during the term of the standard limited warranty with the start date retro-activating back to the date the product shipped from AML. The Extended Warranty is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty is the start date of the original warranty. Note that the Extended Warranty does not cover products that have been subjected to misuse, neglect, improper installation, or that have been modified or used for purposes other than what they were intended.

An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers the failure of internal components as a result of normal wear and tear.
  • Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors. Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged.
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
