Wireless Mobile Computer

Overview

Light Cost, Heavy Workload

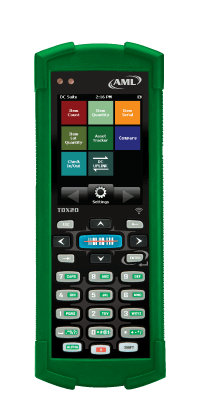

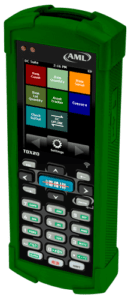

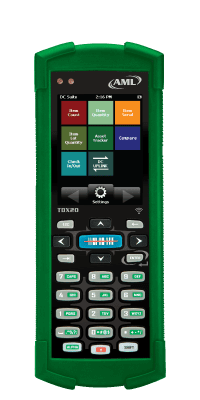

The TDX20 is an exceptional tool for use in commercial applications where the convenience of wireless data communication is preferred over wired methods, and where acquisition cost is an important factor when selecting a data collection device.

AML TDX20 Overview Video

The TDX20 runs Windows CE 6.0 Pro, comes equipped with Internet Explorer for web-based and cloud applications, and with a collection of pre-loaded software applications called DC Suite which are designed specifically for common, everyday barcode data collection tasks.

TDX20 is suitable for applications such as Inventory Counts, Asset Tracking, Check-In/Check-Out, Receiving/Shipping, Audit/Verification, and much more.

Every TDX20 includes:

  • DC Console Application Design Software
  • DC Uplink Software (License Required)
    for those wishing to enable the wireless feature of the DC Suite application
  • DC Suite Data Collection Software
  • Green Protective Case
  • USB cable
  • Standard one year warranty

Applications

Inventory Control

Counting your inventory is an important aspect of proper inventory control and using barcodes makes the process so much faster, with far fewer errors than manual counting.

Retail / Back Office

Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Asset Tracking

Maintain the location and condition of expensive company property, tools and equipment. Use this information to monitor maintenance, age and value of company assets.

Inventory Control

Counting your inventory is an important aspect of proper inventory control and using barcodes makes the process so much faster, with far fewer errors than manual counting.

Retail / Back Office

Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Asset Tracking

Maintain the location and condition of expensive company property, tools and equipment. Use this information to monitor maintenance, age and value of company assets.

Specifications

TDX20 Specifications

Operating System
Windows® Embedded 6.0
Microprocessor
Freescale® i.MX283 @ 454 MHz
Memory (System)
128MB (400Mhz DDR2)
Memory (Storage)
512MB (NAND Flash)
Expansion
MicroSD Slot (Up to 16 GB)
Radio
802.11bgn
BT 2.1 EDR
LCD
2.8″ QVGA Color TFT with Multi-Viewable Angle glass
Touch Screen
Resistive
Batteries
4.2 Volt, Lithium Ion, 4 cells
Capacity
3200 mAh
Charge Time
100% at 6.5 hours
Charge Mode
USB, Wall Adapter
Physical Size
7.40″ x 2.75″ x 1.30″ (188mm x 70mm x 33 mm)
Weight
10.4 ounces (Including batteries and silicone case)
Sealing
IP54
Operating Temperature
-20° to 50°C / -4° to 122°F
Drop Specification
4′ drop
Barcode Scanning
1D CCD scanning
2D Imager scanning
Keypad
24-key T-9 (Text on 9 keys)
User Feedback
Beeper, Two dual-color LEDs, AML ScreenFlash

Accessories

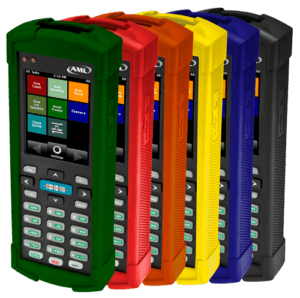

Protective Case CAS-7300-XXX

Durable rubber boot with textured grip sides, with up to six colors available. The optional colors include red, black, orange, yellow, green and blue.

Protective Canvas Case with Lanyard CAS-LDX10-N

This ergonomic canvas-style protective case features a splatter-proof button cover and a neck lanyard with a cushioning pad for comfort. Ideal for the hands-on work environment!

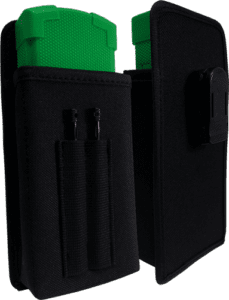

Protective Canvas Belt Holster CAS-LDX10

This ergonomic canvas-style protective belt holster features a heavy-duty belt clip and a dual stylus-holder pocket.

Charging Adapter PWR-LDX10

Use the PWR-LDX10 with the MicroUSB cable included with the LDX10 or TDX20 devices to charge them via 110VAC outlet.

MicroUSB Cable, Type B CBL-MICROUSB-B

Every LDX10 or TDX20 includes a MicroUSB cable, Type B. Additional AML approved USB cables are available.

Warranties

AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.

An Extended Warranty REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers failures as a result of normal wear and tear (not abuse).
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty may be purchased anytime during the term of the standard limited warranty with the start date retro-activating back to the date the product shipped from AML. The Extended Warranty is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty is the start date of the original warranty. Note that the Extended Warranty does not cover products that have been subjected to misuse, neglect, improper installation, or that have been modified or used for purposes other than what they were intended.

An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers the failure of internal components as a result of normal wear and tear.
  • Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors. Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged.
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
